    24 Core GYFTY FRP Strength Member Aerial Optic Fiber Cable

    Ask Lasest Price
    Brand Name : KNOFC
    Model Number : GYFTY 24 Core
    Certification : ISO9001/CE
    Price : Negotiable
    Payment Terms : L/C, T/T, Western Union, MoneyGram
    Supply Ability : 200000M/Week
    Delivery Time : 8-10 working days
    • Product Details
    • Company Profile

    24 Core GYFTY FRP Strength Member Aerial Optic Fiber Cable

    24 Core GYFTY FRP Strength Member Aerial Outdoor Fiber Optic Cable​


    Description:

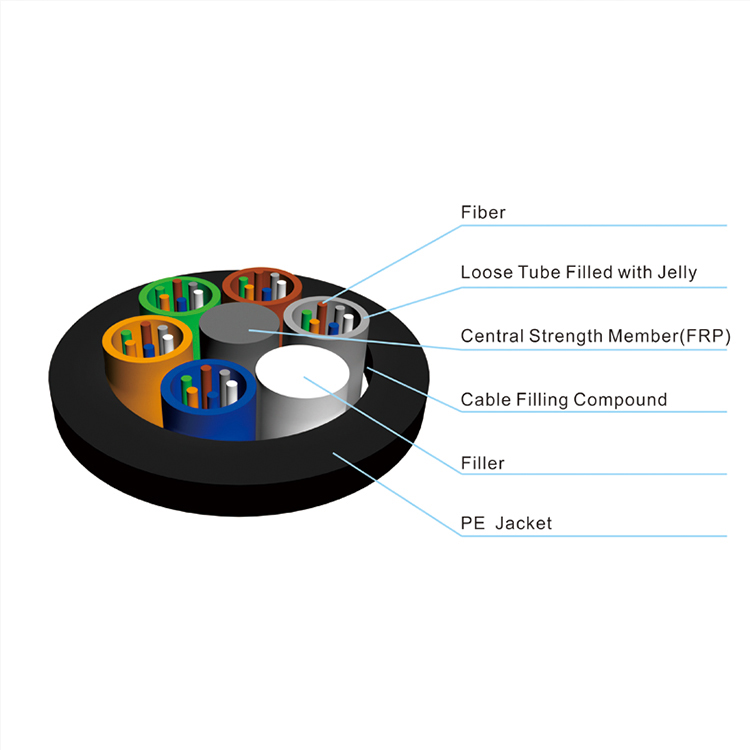

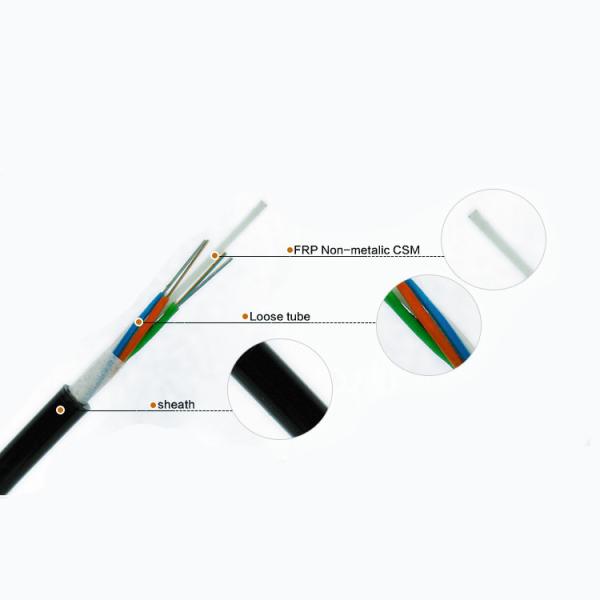

    The fibers,250um,, are positioned in a loose tube made of a high modulus plastic. The tubes are filled with a waterresistant filling compound. A Fiber Reinforced Plastic (FRP) locates in the center of core as a non-metallic strength member. The tubes (and fillers) are stranded around the strength member into a compact and circular core. The cable core is wrapped with the water blocking tape to protect it from water ingress,,the cable is completed with a PE sheath.

    Characteristics:

    1. Good mechanical and temperature performance.
    2. High strength loose tube that is hydrolysis resistant.
    3. Special tube filling compound ensure a critical protection of fiber
    4. Crush resistance and flexibility.
    5. The following measures are taken to ensure the cable watertight:
    a.Single Fiber Reinforced Plastic as the central strength member
    b. Loose tube filling compound
    c. 100% cable core filling


    Application:

    1. Adopted to outdoor distribution.
    2. Suitable for aerial, pipeline laying method.
    3. Long distance and local area network communication.


    Cable Mechanical characteristic:

    Cable typeDiameter (mm)Weight (kg/km)Tensile strength
    Long/short term (N)
    Crush Resistance Long/Short Term(N/100mm)Bending radius
    Dynamic/static (mm)
    Storage temperature ( ℃ )
    GYFTY-2~609.085600/1500300/100020D/10D-20~+70
    GYFTY-62~721095
    GYFTY-74~9611110
    GYFTY-98~12013125
    GYFTY-122~14415145

    Mechanical requirements and methods of fiber cable:

    Tensile strength10935N, conform to IEC 794-1-E1,While Fiber Strain≤0.33%
    Crush2200N/100mm, conform to IEC 794-1-E3
    ImpactConform to IEC 794-1-E4
    Repeated bendingConform to IEC 794-1-E6
    TorsionConform to IEC 794-1-E7
    FlexingConform to IEC 794-1-E8
    KinkConform to IEC 794-1-E10
    Cable bendConform to IEC 794-1-E11
    VibrationConform to IEC 794-1
    Water penetrationConform to IEC 794-1-F5B
    AbrasionConform to IEC 794-1-E2
    Temperature cycling testConform to IEC 794-1-F1
    Dielectric strength of outer jacketConform to ITU-T Rec.K25
