    G652D 2 Core Armoured Cable GJYWFJH FTTA Optic Fiber Cable

    Ask Lasest Price
    Brand Name : KNOFC
    Model Number : GJYWFJH
    Certification : ISO9001/CE
    Price : Negotiable
    Payment Terms : L/C, T/T, Western Union, MoneyGram
    Supply Ability : 200000M/Week
    Delivery Time : 8-10 working days
    • Product Details
    • Company Profile

    G652D 2 Core Armoured Cable GJYWFJH FTTA Optic Fiber Cable

    FTTA Optic Fiber Cable 2 Core G652D Fiber Armored Cable


    Descrition:

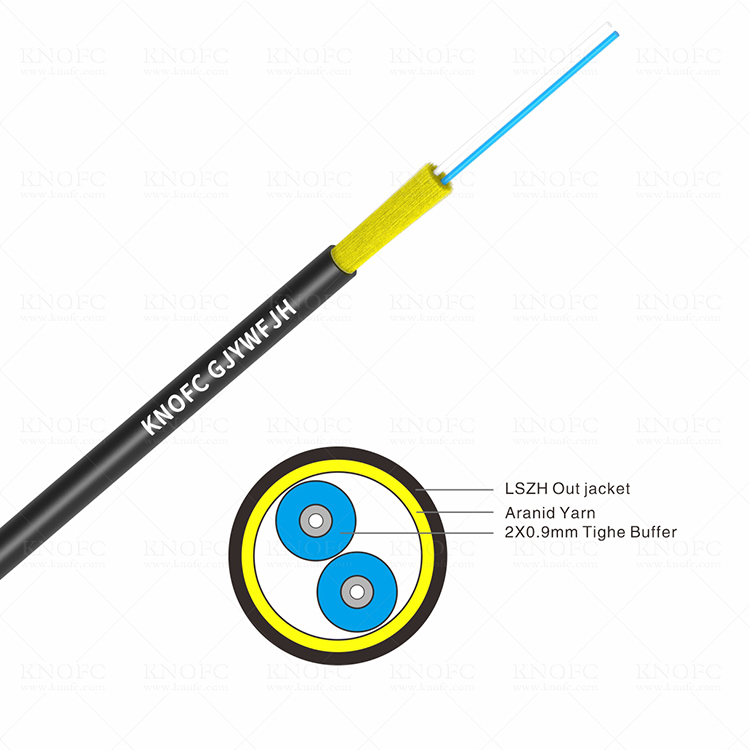

    GJYWFJH Indoor/ Outdoor Cable used as optical transmission medium with 900um subcable, a layer of aramid yarn is placed outside the compact fiber to enhance the element, and the cable is completed with outside jacket,(PVC,LSZH,TPU,PE or other material according to customer's requirements).


    Features:

    1. Good mechanical and temperature characteristics.
    2. Good lateral compression and flexibility.
    3. Small diameter, light weight, easy to connect, and support large capacity data transmission.
    4. Outer jacket material has the advantages of water proof, flame retardant, environmental protection.


    Application:

    1. Remote base station communication such as RRU or BBU
    2. Smart substation and CATV Outdoor application.
    3. Emergency access to optical fiber communication.
    4. Used in FTTX, from residence to datat center and cabling level and vertical, also usedin FTTH cable.


    Technical parameters:


    Cable typeDiameter (mm)Weight (kg/km)Tensile strength
    Long/short term (N)
    Crush Resistance Long/Short Term(N/100mm)Bending radius
    Dynamic/static (mm)
    Storage temperature ( ℃ )
    GJYWFJH 2-45.030100/300300/100020D/10D-40~+70
    GJYWFJH 6-126.050
