GYXTW Cable Loose Tube 12 Core SM Armoured Two Steel Wire Fiber
Cable
Description:

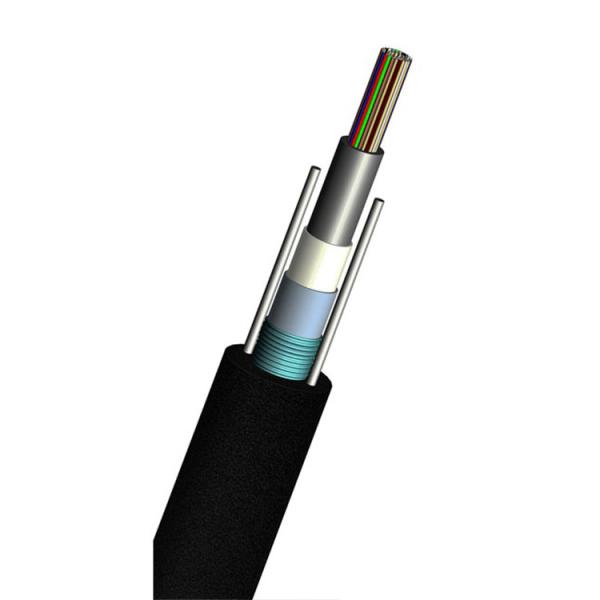

The fibers are positioned in a loose tube made of a high modulus
plastic.The tubes are filled with a waterresistant filling
compound. The tube is wrapped with a layer of PSP longitudinally.
Between the PSP and the loose tube water-blocking material is
applied to keep the cable compact and watertight. Two parallel
steel wires are placed at the two sides of the steel tape. The
cable is completed with a polyethylene (PE) sheath.
Characteristics:
1. Good mechanical and temperature performance.
2. High strength loose tube that is hydrolysis resistant.
3. Special tube filling compound ensure a critical protection of
fiber.
4. Crush resistance and flexibility.
5. PSP enhancing moisture-proof.
6. Two parallel steel wires ensure tensile strength.
7. Small diameter, light weight and friendly installation.
8. Long delivery length.
Application:
1. Adopted to outdoor distribution.
2. Suitable for aerial, pipeline laying method.
3. Long distance and local area network communication.
Optical Fiber Characteristic:
| Fiber Type | G.652D,125.0+-1.0μm |
| Mode Field Diameter | 9.2+-0.2μm at 1310 nm |
| Cladding Diameter | 125+-1μm |
| Cladding Non-Circularity | <=1% |
| Coating Diameter | 245+-10μm |
| Attenuation Coefficient | <=0.38dB/km at 1310nm,<=0.22dB/km at 1550nm |
| Chromatic Dispersion | <=3.5ps/nm/km at1285-1330nm,<=18ps/nm/km at 1550nm |
| Zero Disperson Wavelength | 1300-1322nm |
| PMD Coefficient | <=0.2ps/√km |
Cable Mechanical Characteristic:
| Cable type | Diameter (mm) | Weight (kg/km) | Tensile strength
Long/short term (N) | Crush Resistance Long/Short Term(N/100mm) | Bending radius
Dynamic/static (mm) | Storage temperature ( ℃ ) |
| GYXTW-2~24 | 8 | 70 | 600/1500 | 300/1000 | 20D/10D | -40~+70 |
