    G657A Single Mode Fiber Patch Cord Fiber Optic Cable Assemblies

    Ask Lasest Price
    Brand Name : KNOFC
    Model Number : Mini SC/APC Drop Cable Pigtail
    Certification : ISO9001/CE
    Price : Negotiable
    Payment Terms : L/C, T/T, Western Union, MoneyGram
    Supply Ability : 5000pcs/Week
    • Product Details
    • Company Profile

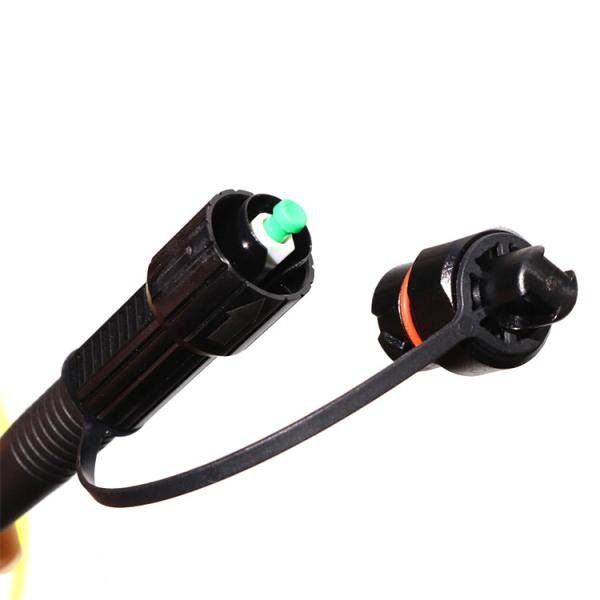

    G657A Single Mode Fiber Patch Cord Fiber Optic Cable Assemblies

    IP68 Mini SC Connector 1 Fiber G657A Single Mode Patch Cord


    Descrition:

    Huawei Compatible Mini SC pre-terminated OSP 2.0x5.0mm or 5.0mm Outdoor Flat drop cable pigtail provide easy FTTx (Fiber-To-The-X) installation and termination using existing hardware and installation methods for drops to homes and businesses. Its flat profile is compatible with existing wedge (P) clamps.The Ruggedized Connector, an outside plant Mini SC/APC, is compatible with industry standard OSP terminals.


    Features:

    1.Cost effective solution for in house termination
    2. IP67 Water immersion and Dust protection for hash environment
    3. Chemical Resistance
    4. Simple assembly requiring no special tools
    5. Push-pull insertion with bayonet-style mechanical latch provides easy installation and removal
    6. Durable mechanical mating, minimum of 500 matings
    7. Wide range of operational temperature for outside plant -40 to+85°C
    8. SC/APC IL<0.3 typically
    9.100% optically tested to ensure quality performance assemblies


    Connector Technical Data:

    TypeReferenceNote
    SCIEC 61754-4Single mode SimplexAPC: Green connectors

    ItemValues
    Connector TypeHuawei Mini SC/APC
    Insertion Loss<0.3dB
    Return Loss>60dB

    Cable Technical Data:

    ItemValues
    Cable TypeOutdoor Flat Drop Cable
    Sheath MaterialLSZH
    Messenger Wire1.2±0.02mm
    Steel Wire0.5±0.02mm
    Fiber TypeG657A1/G657A2
    Cable Diameter(2.0±0.1)x(5.0±0.2)mm

    Cable Paremeters:

    Cable countDiameter (mm)Weight (kg/km)Tensile strength
    Long/short term (N)
    Crush Resistance Long/Short Term(N/100mm)Bending radius
    Dynamic/static (mm)
    Storage temperature ( )
    Drop cable 1C2.0x5.0mm22300/6001000/220020D/10D-40~+70

    Application:

    1. Fiber optic communications in harsh outdoor environments.
    2. Outdoor communication equipment connection.
    3. Waterproof Fiber Equipment.
    4. Remote wireless Base Station.
    5. FTTx ISP Project.
