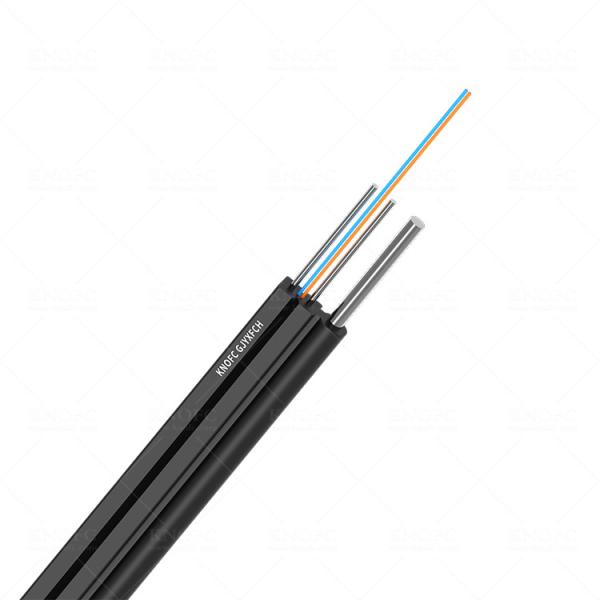

FTTH Drop Cable Outdoor 1Core G657A Fiber steel wire LSZH Jacket
Description:
FTTH Drop Cable directly connected to their homes, their bandwidth,
wavelength and transmission technology type are not restricted. The
optical fiber unit id positioned in the centre. Two parallel
strength member are placed at the two sides. A steel wire as the
additional strength member is also applied ,then, the cable is
completed with a black LSZH sheath.
Characteristics:
1. Special low-bend-sensitivity fiber provides high bandwidth and
excellent communication transmission property;
2. Simple structure, light weight and high practicability;
3. Low smoke, zero halogen and flame retardant sheath.
Application:
1. Adopted to outdoor distribution;
2. Suitable for aerial, pipeline laying method;
3. As FTTH cable,for outdoor horizontal and vertical cabling.
Technical Data:
| Item | Contents | Value |
| Central strength member | Material | FRP / KFRP / steel wire |
| Central strength member | Diameter | 0.5mm*2+1.0mm |
| Outer sheath | Material | LSZH |
| Outer sheath | Thickness | 0.5mm~0.8mm |
Optical Fiber Characteristic:
| | G.652.D | G.655 | 50/125μm | 62.5/125μm |
| Attenuation | @850nm | | | ≤3.0 dB/km | ≤3.0 dB/km |
| @1300nm | | | ≤1.0 dB/km | ≤1.0 dB/km |
| @1310nm | ≤0.36 dB/km | ≤0.40 dB/km | | |
| @1550nm | ≤0.22 dB/km | ≤0.23dB/km | | |
| Bandwidth | @850nm | | | ≥500 MHz·km | ≥200 MHz·km |
| @1300nm | | | ≥1000 MHz·km | ≥600 MHz·km |
| Numerical Aperture | | | 0.200±0.015NA | 0.275±0.015NA |
| Cable Cut-off Wavelengthλcc | ≤1260nm | ≤1480nm | | |
Cable Mechanical characteristic:
| Cable type | Diameter(mm) | Weight
(kg/km) | Tensile strength
Long/short term
(N) | Bending radius
Dynamic/static
(mm) | Storage temperature
( ℃ ) |
| GJYXCH-1~2 | 2.0*5.0 | 22 | 300/600 | 20D/10D | -20~+70 |
| GJYXCH-2~4 | 2.0*5.0 | 19 | 300/600 | 20D/10D | -20~+70 |
