    IP68 SC APC 1F G657A2 Fiber Drop Cable Pigtail 100m

    Ask Lasest Price
    Brand Name : KNOFC or OEM
    Model Number : Waterproof Mini SC Drop Cable Assembly Pigtail
    Certification : CE/ISO9001
    Price : Negotiable
    Payment Terms : L/C, T/T, Western Union, MoneyGram
    Supply Ability : 60000pcs/Month
    • Product Details
    • Company Profile

    IP68 SC APC 1F G657A2 Fiber Drop Cable Pigtail 100m

    IP68 Waterproof Mini SC APC 1F G657A2 Fiber Optic Drop Cable Pigtail 100M


    Description:

    Huawei Compatible Mini SC pre-terminated Outdoor Flat drop cable pigtail provide easy FTTx (Fiber-To-The-X) installation and termination using existing hardware and installation methods for drops to homes and businesses. Its flat profile is compatible with existing wedge (P) clamps.The Ruggedized Connector, an outside plant Mini SC/APC, is compatible with industry standard OSP terminals.


    Features:

    • Provides superior weather resistance for FTTA and other outdoor applications.
    • Allows flexibility to use factory terminated assemblies or pre-terminated or field installed assemblies.
    • Suitable for FTTA and outdoor temperature extremes Ensures functionality in harsh weather environments.
    • Can be installs without special tooling.
    • Threaded style coupling.
    • Provides bend protection for installation and long term use.
    • Faster network roll out and customer installations.
    • 100% tested assemblies built in a controlled environment.
    • Lower cost deployment by utilizing plug and play solutions.
    • Custom built solutions with quick turnaround times.

    Application:

    • Fiber optic communications in harsh outdoor environments.
    • Outdoor communication equipment connection.
    • Waterproof Fiber Equipment.
    • Remote wireless Base Station.
    • FTTx ISP Project.

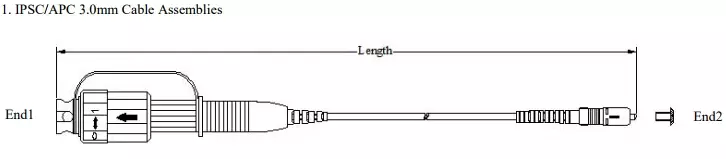

    Dimensional Diagrams:

    Connector technical data:

    ItemsValues
    Connector TypeHuawei Mini SC
    Insertion Loss<0.3dB
    Return Loss>60dB

    Cable technical data:

    ItemValues
    Cable TypeOutdoor FTTH Drop Cable
    Sheath MaterialLSZH
    Messenger Wire1.0±0.02mm
    Steel Wire0.5±0.02mm
    Fiber TypeG657A1 / G657A2
    Cable Diameter(2.0±0.1)x(5.0±0.2)mm

    Cable Paremeters:

    Cable typeDiameter(mm)Weight
    (kg/km)
    Tensile strength
    Long/short term
    (N)
    Bending radius
    Dynamic/static
    (mm)
    Storage temperature
    ( ℃ )
    GJYXCH-1~42.0*5.0mm22300/60020D/10D-20~+70
