12core GYXTW Single Mode Armored Cable G652D For Aerial

    Buy cheap 12core GYXTW Single Mode Armored Cable G652D For Aerial from wholesalers

    Buy cheap 12core GYXTW Single Mode Armored Cable G652D For Aerial from wholesalers
    • Buy cheap 12core GYXTW Single Mode Armored Cable G652D For Aerial from wholesalers
    • Buy cheap 12core GYXTW Single Mode Armored Cable G652D For Aerial from wholesalers

    12core GYXTW Single Mode Armored Cable G652D For Aerial

    Ask Lasest Price
    Brand Name : KNOFC
    Model Number : GYXTW 12 Core
    Certification : ISO9001/CE
    Price : Negotiable
    Payment Terms : L/C, T/T, Western Union, MoneyGram
    Supply Ability : 200000M/Week
    Delivery Time : 8-10 working days
    • Product Details
    • Company Profile

    12core GYXTW Single Mode Armored Cable G652D For Aerial

    GYXTW fiber optic cable armored cable 6 core single mode G652D


    Description:

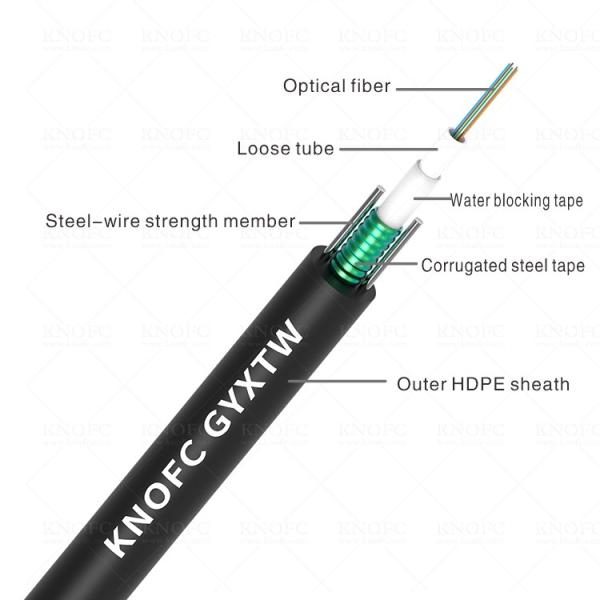

    The fibers, 250µm, are positioned in a loose tube made of a high modulus plastic. The tubes are filled with a water-resistant filling compound. The tube is wrapped with a layer of PSP longitudinally. Between the PSP and the loose tube water-blocking material is applied to keep the cable compact and watertight. Two parallel steel wires are placed at the two sides of the steel tape. The cable is completed with a polyethylene (PE) sheath.


    Characteristics:

    * Good mechanical and temperature performance.
    * High strength loose tube that is hydrolysis resistant.
    * Special tube filling compound ensure a critical protection of fiber.
    * Crush resistance and flexibility.
    * PSP enhancing moisture-proof.
    * Two parallel steel wires ensure tensile strength.
    * Small diameter, light weight and friendly installation.


    Application:

    1. Adopted to outdoor distribution.

    2. Suitable for aerial, pipeline laying method.

    3. Long distance and local area network communication.


    Optical Fiber Characteristic:

    G.652.DG.65550/125μm62.5/125μm
    Attenuation@850nm≤3.0 dB/km≤3.0 dB/km
    @1300nm≤1.0 dB/km≤1.0 dB/km
    @1310nm≤0.36 dB/km≤0.40 dB/km
    @1550nm≤0.22 dB/km≤0.23dB/km
    Bandwidth@850nm≥500 MHz·km≥200 MHz·km
    @1300nm≥1000 MHz·km≥600 MHz·km
    Numerical Aperture0.200±0.015NA0.275±0.015NA
    Cable Cut-off Wavelengthλcc≤1260nm≤1480nm

    Cable Mechanical characteristic:

    Cable typeDiameter (mm)Weight (kg/km)Tensile strength
    Long/short term (N)
    Crush Resistance Long/Short Term(N/100mm)Bending radius
    Dynamic/static (mm)
    Storage temperature ( ℃ )
    GYXTW-2~24870600/1500300/100020D/10D-40~+70
