Armored Fiber Cable 8 Core Single Mode G652D Fiber GYXTW Cable
Description:

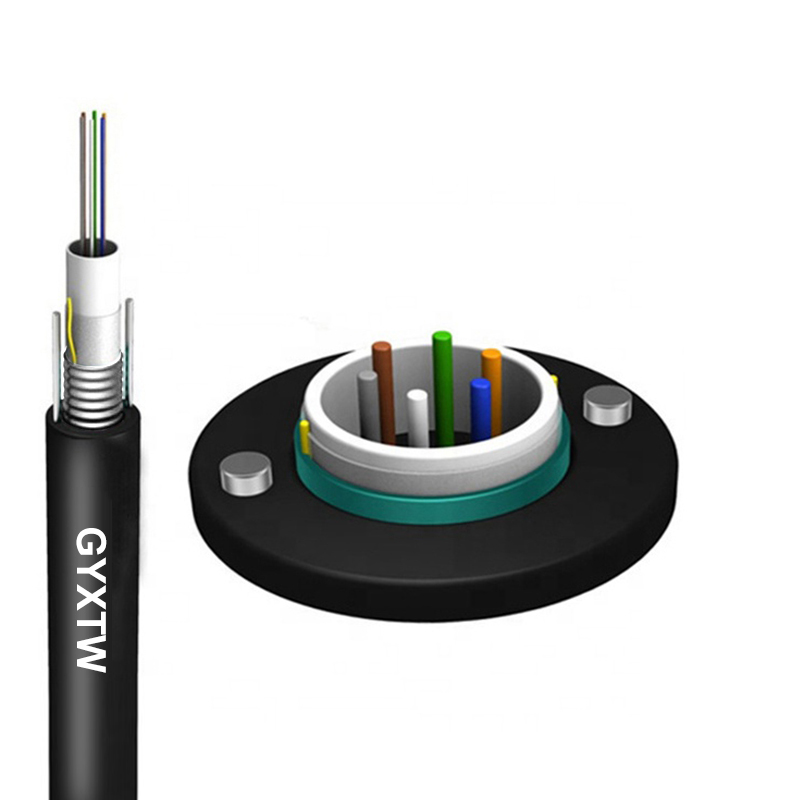

The fibers are positioned in a loose tube made of a high modulus
plastic.The tubes are filled with a waterresistant filling
compound. The tube is wrapped with a layer of PSP longitudinally.
Between the PSP and the loose tube water-blocking material is
applied to keep the cable compact and watertight. Two parallel
steel wires are placed at the two sides of the steel tape. The
cable is completed with a polyethylene (PE) sheath.
Characteristics:
1. Good mechanical and temperature performance.
2. High strength loose tube that is hydrolysis resistant.
3. Special tube filling compound ensure a critical protection of
fiber.
4. Crush resistance and flexibility.
5. PSP enhancing moisture-proof.
6. Two parallel steel wires ensure tensile strength.
7. Small diameter, light weight and friendly installation.
8. Long delivery length.
Application:
1. Adopted to outdoor distribution.
2. Suitable for aerial, pipeline laying method.
3. Long distance and local area network communication.
Optical Fiber Characteristic:
| | G.652.D | G.655 | 50/125μm | 62.5/125μm |
| Attenuation | @850nm | | | ≤3.0 dB/km | ≤3.0 dB/km |
| @1300nm | | | ≤1.0 dB/km | ≤1.0 dB/km |
| @1310nm | ≤0.36 dB/km | ≤0.40 dB/km | | |
| @1550nm | ≤0.22 dB/km | ≤0.23dB/km | | |
| Bandwidth | @850nm | | | ≥500 MHz·km | ≥200 MHz·km |
| @1300nm | | | ≥1000 MHz·km | ≥600 MHz·km |
| Numerical Aperture | | | 0.200±0.015NA | 0.275±0.015NA |
| Cable Cut-off Wavelengthλcc | ≤1260nm | ≤1480nm | | |
Cable Mechanical characteristic:
| Cable type | Diameter (mm) | Weight (kg/km) | Tensile strength
Long/short term (N) | Crush Resistance Long/Short Term(N/100mm) | Bending radius
Dynamic/static (mm) | Storage temperature ( ℃ ) |
| GYXTW-2~24 | 8 | 70 | 600/1500 | 300/1000 | 20D/10D | -20~+70 |
