HDPE 24 Core ADSS Fiber Cable FRP Outdoor Self Support Aerial

    Buy cheap HDPE 24 Core ADSS Fiber Cable FRP Outdoor Self Support Aerial from wholesalers

    Buy cheap HDPE 24 Core ADSS Fiber Cable FRP Outdoor Self Support Aerial from wholesalers
    • Buy cheap HDPE 24 Core ADSS Fiber Cable FRP Outdoor Self Support Aerial from wholesalers
    • Buy cheap HDPE 24 Core ADSS Fiber Cable FRP Outdoor Self Support Aerial from wholesalers

    HDPE 24 Core ADSS Fiber Cable FRP Outdoor Self Support Aerial

    Ask Lasest Price
    Brand Name : KNOFC
    Model Number : ADSS 24 core
    Certification : CE/ISO9001
    Price : Negotiable
    Payment Terms : L/C, T/T, Western Union, MoneyGram
    Supply Ability : 500000M/Week
    • Product Details
    • Company Profile

    HDPE 24 Core ADSS Fiber Cable FRP Outdoor Self Support Aerial

    Adss 24 Core Fiber Optic Cable Price Outdoor Fiber Optic Cable


    Description:

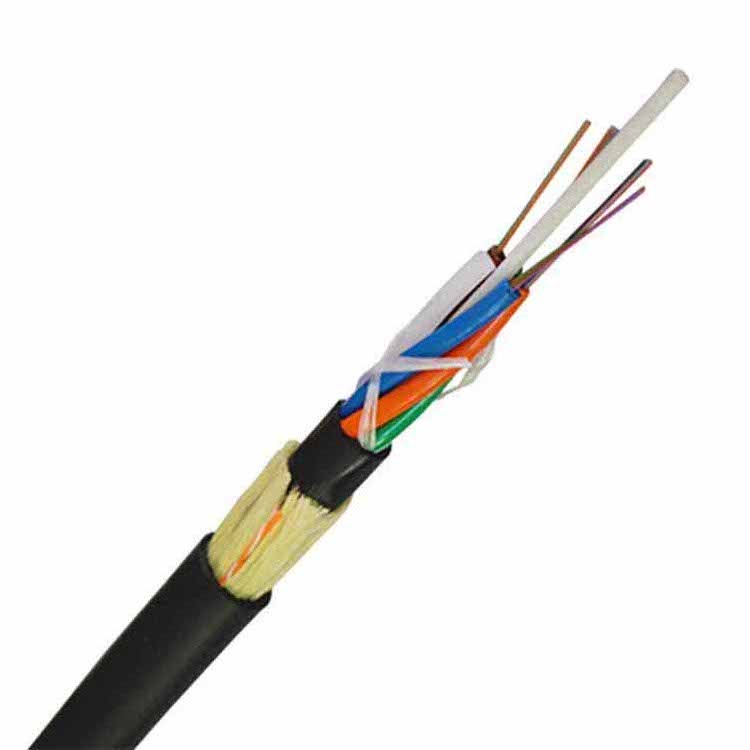

    The fibers are positioned in a loose tube made of a high modulus plastic. The tubes are filled with a water-resistant filling compound. The tube is wrapped with a layer of Kevlar. Between the Kevlar yarn and the loose tube water- blocking material is applied to keep the cable compact and watertight. The cable is completed with a polyethylene (HDPE) or AT sheath.


    Characteristics:

    1. Can be installed without shutting off the power.

    2. Light weight and small diameter reducing the load caused by ice and wind and the load on towers and backprops.

    3. Large span lengths and the largest span is over 1000m.

    4. Good performance of tensile strength and temperature.


    Application:

    The actual status of overhead power lines is taken into full consideration when ADSS cable is being designed. For overhead power lines under 110kV, PE outer sheath is applied. FOR power lines equal to or over 110kV, AT outer sheath is applied. The dedicate design of aramid quantity and stranding process can satisfy the demand on various spans.


    Cable Mechanical Characteristic:

    Cable typeDiameter(mm)Weight
    (kg/km)
    Tensile strength
    Long/short term
    (N)
    Bending radius
    Dynamic/static
    (mm)
    Storage temperature
    ( ℃ )
    ADSS-2~6010.01101000/300020D/10D-20~+70
    ADSS-62~7212.01201000/300020D/10D-20~+70
    ADSS-74~9614.01301000/300020D/10D-20~+70
    ADSS-98~14416.01851000/300020D/10D-20~+70
    ADSS-146~28820.02981000/300020D/10D-20~+70
