    FTTH Outdoor Pre Connectorized Drop Cable SC APC G657A2

    Ask Lasest Price
    Brand Name : KNOFC or OEM
    Model Number : Corning Patch Cord SC/APC
    Certification : CE/ISO9001
    Price : Negotiable
    Payment Terms : L/C, T/T, Western Union, MoneyGram
    Supply Ability : 20000pcs/Month
    • Product Details
    • Company Profile

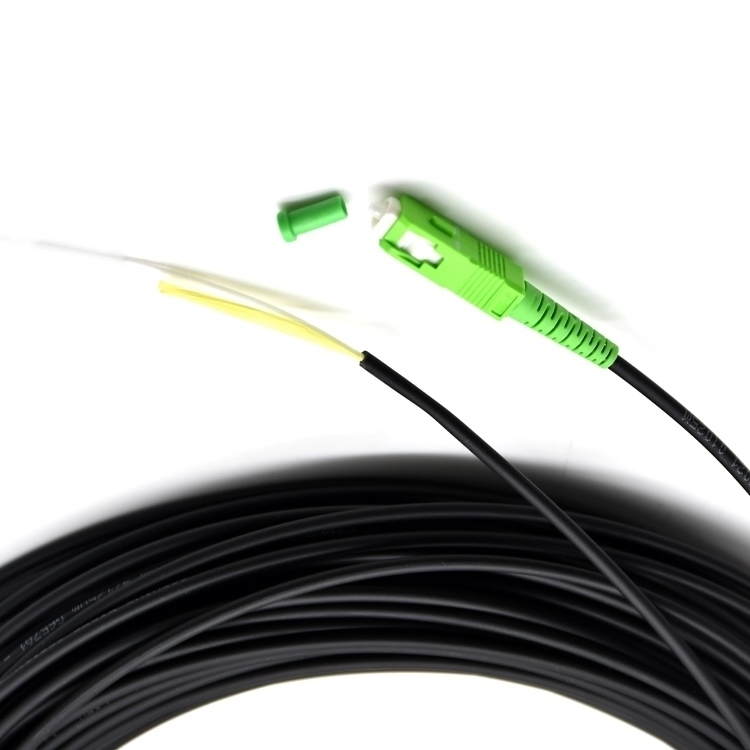

    FTTH Outdoor Pre Connectorized Drop Cable SC APC G657A2

    FTTH outdoor preconnectorized drop cable mini SC APC to SC/APC Fiber Patch Cord


    Description:

    SC APC Connector Patch Cord Corning Fiber. It provide a robust and sealed connection solution for fiber to the home (FTTH) connectivity and Suitable for flat drop cable,3.0mm round cable, 5.0mm round cable. the environmentally sealed and hardened connector to reduce the cost and the time of drop cable deployment in optical access networks.


    Features:

    • Available in multiple fiber lengths to meet all your FTTX design drop deployment.
    • Suitable for FTTX and outdoor temperature extremes Ensures functionality in harsh weather environments.
    • Designed to reduce the cost and time of drop fiber deployment in the network.
    • Provides superior weather resistance for FTTX and other outdoor applications.
    • Can be installs without special tooling.
    • 100% tested assemblies built in a controlled environment.
    • Environmentally protected while maintaining superior durability and reliability for use in the connection to the subscriber.
    • Flexibility and reliability provides fast and simple deployments within a network.
    • Provides bend protection for installation and long term use.
    • Allows flexibility to use factory terminated assemblies or pre-terminated or field installed assemblies.

    Application:

    • Fiber optic communications in harsh outdoor environments.
    • Outdoor communication equipment connection.
    • Remote wireless Base Station.
    • FTTx ISP Project.

    Specification:

    Product NameSC APC Armored Patch Cord
    Length50M,100M, 150M or Customize
    Connection StyleSC/APC-SC/APC
    Fiber TypeG657A2
    Typical Insertion Loss≤ 0.20 dB
    Maximum Insertion Loss≤ 0.30 dB

    Connector technical data:

    ItemsValues
    Connector TypeSC/APC
    Insertion Loss<0.3dB
    Return Loss>60dB

    Cable technical data:

    ItemValues
    Cable TypeOutdoor Drop Cable
    Sheath MaterialLSZH
    Strength memberAramid Yarn
    Cable Diameter3.0mm or 5.0mm

    Cable Paremeters:

    Cable typeDiameter(mm)Weight
    (kg/km)
    Tensile strength
    Long/short term
    (N)
    Bending radius
    Dynamic/static
    (mm)
    Storage temperature
    ( ℃ )
    Drop Cable5.0mm22300/60020D/10D-20~+70
