    FRP 24core G652D Single Mode Optical Fiber Cable Aerial ASU80

    Ask Lasest Price
    Brand Name : KNOFC
    Model Number : ASU80 12 FO
    Certification : ISO9001/CE
    Price : Negotiable
    Payment Terms : L/C, T/T, Western Union, MoneyGram
    Supply Ability : 200000M/Week
    Delivery Time : 8-10 working days
    • Product Details
    • Company Profile

    FRP 24core G652D Single Mode Optical Fiber Cable Aerial ASU80

    Aerial Use ASU80 Cable G652d Fibra Optica De 12 Hilos


    Description:

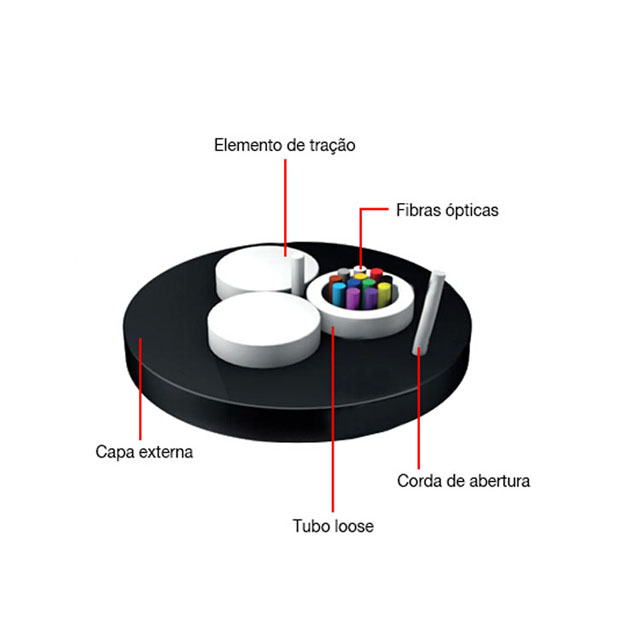

    The optical fiber is put in a loose tube.The fiber can be 1-24 cores in the tube. Tube filling compound will be used for as water blocking elements. FRP are put together for the tensile strength purpose. This is economic and compact design for replace GYFTY in SZ stranded design. The cable is finished with PE or LSZH jacket. This cable has the fetures of small size and light weight. It help to save the shipping cost. Applicable for short span aerial and duct installation.

    Characteristics:

    · Special tube filling compound ensure a critical protection of fiber.
    · Crush resistance and flexibility.
    · PE/LSZH sheath protects cable from ultraviolet radiation.
    · Good mechanical and temperature performance.
    · High strength loose tube that is hydrolysis resistant.
    · Light weight and small size convenient to laying.


    Application:

    1. Adopted to outdoor distribution.
    2. Suitable for aerial, pipeline laying method.
    3. Long distance and local area network communication.


    Optical Fiber Characteristic:

    G.652.DG.65550/125μm62.5/125μm
    Attenuation@850nm≤3.0 dB/km≤3.0 dB/km
    @1300nm≤1.0 dB/km≤1.0 dB/km
    @1310nm≤0.36 dB/km≤0.40 dB/km
    @1550nm≤0.22 dB/km≤0.23dB/km
    Bandwidth@850nm≥500 MHz·km≥200 MHz·km
    @1300nm≥1000 MHz·km≥600 MHz·km
    Numerical Aperture0.200±0.015NA0.275±0.015NA
    Cable Cut-off Wavelengthλcc≤1260nm≤1480nm

    Cable Mechanical characteristic:

    Cable typeDiameter (mm)Weight (kg/km)Tensile strength
    Long/short term (N)
    Crush Resistance Long/Short Term(N/100mm)Bending radius
    Dynamic/static (mm)
    Storage temperature ( )
    ASU80-2~24870600/1500300/100020D/10D-20~+70
