    ASU80 GYFXTY FRP HDPE Optic Fiber Cable 12FO Outdoor Fiber Optic Cable

    Ask Lasest Price
    Brand Name : KNOFC
    Model Number : ASU80 12 Core
    Certification : ISO9001/CE
    Price : Negotiable
    Payment Terms : L/C, T/T, Western Union, MoneyGram
    Supply Ability : 200000M/Week
    Delivery Time : 8-10 working days
    • Product Details
    • Company Profile

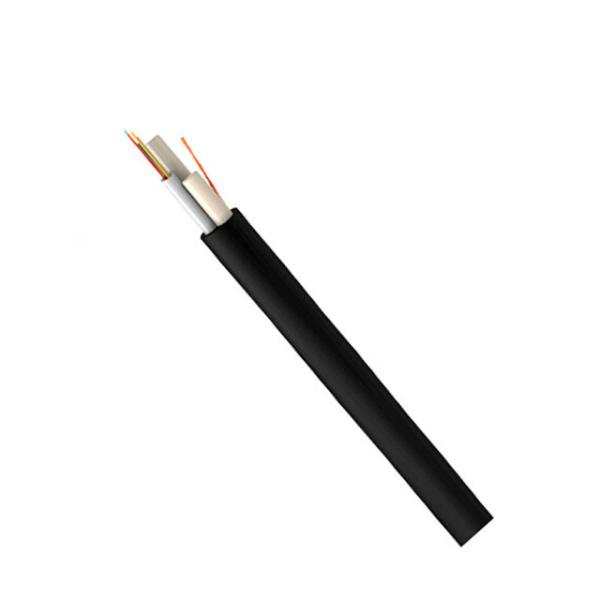

    ASU80 GYFXTY FRP HDPE Optic Fiber Cable 12FO Outdoor Fiber Optic Cable

    ASU80 GYFXTY Fiber Optic Cable CFOA-SM-ASU-80-12FO Optic Fiber Cable


    Description:

    The optical fiber is put in a loose tube.The fiber can be 1-24 cores in the tube. Tube filling compound will be used for as water blocking elements. FRP are put together for the tensile strength purpose. This is economic and compact design for replace GYFTY in SZ stranded design. The cable is finished with PE or LSZH jacket. This cable has the fetures of small size and light weight. It help to save the shipping cost. Applicable for short span aerial and duct installation.

    Characteristics:

    • Small Size and Ligth Weight.
    • Two FRP as strength member to provide good tensile performance.
    • Gel Filled or gel free , good waterproof performance.
    • Low price ,high fiber capacity.
    • Applicable for short span aerial and duct installation.

    Application:

    1. Adopted to outdoor distribution.
    2. Suitable for aerial, pipeline laying method.
    3. Long distance and local area network communication.


    Optical Fiber Characteristic:

    G.652.DG.65550/125μm62.5/125μm
    Attenuation@850nm≤3.0 dB/km≤3.0 dB/km
    @1300nm≤1.0 dB/km≤1.0 dB/km
    @1310nm≤0.36 dB/km≤0.40 dB/km
    @1550nm≤0.22 dB/km≤0.23dB/km
    Bandwidth@850nm≥500 MHz·km≥200 MHz·km
    @1300nm≥1000 MHz·km≥600 MHz·km
    Numerical Aperture0.200±0.015NA0.275±0.015NA
    Cable Cut-off Wavelengthλcc≤1260nm≤1480nm

    Cable Mechanical characteristic:

    Cable typeDiameter (mm)Weight (kg/km)Tensile strength
    Long/short term (N)
    Crush Resistance Long/Short Term(N/100mm)Bending radius
    Dynamic/static (mm)
    Storage temperature ( )
    ASU80-2~24870600/1500300/100020D/10D-20~+70
